• Direct reading thermostat and overheat indicator.
• Body powder coated, chamber aluminium coated mild steel.
• Shelves chrome wire type, temperature range from ambient to 250ºC.
• Conventional air circulation.

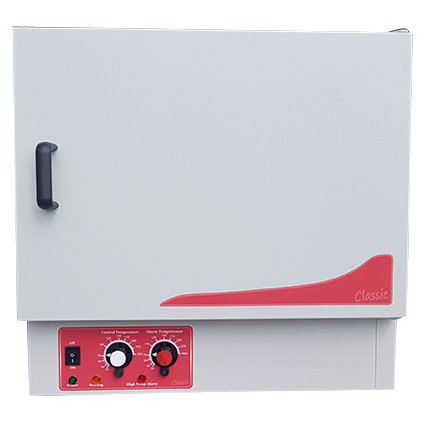

The GENLAB Mino Economy Ovens offer a range of highly efficient, reliable, cost effective units to suit most drying, warming and general laboratory app lications. The simple to use thermostat system is good for teaching purposes and the units can be built up to meet individual requirements.

Specifications

• 7 sizes 6 to 100 litres
• Temperature range: 40ºC to 250ºC
• Fluctuation +/- 0.75ºC
• Easy clean powder coated body
• Aluminium coated mild steel chamber
• Direct reading thermostat
• Safety overheat thermostat
• Full two year warranty
• C.E. compliant

Options

• Stainless steel chamber (SS)
• Fan circulation (F) (30 litre +)
• Other options and accessories available on request

Mino Economy Oven Design

The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel (SS) chamber available as an option.

Fitted with fixed shelf runners and removable chrome plated wire grid shelves.

Mino Economy Oven Heating

Heated by Incoloy sheathed elements, positioned below the chamber floor for natural convection units and fitted around the fan on the back wall of the chamber for mechanical convection units.

Mino Economy Oven Controls

The control system comprises of a direct reading thermostat and overheat thermostat, both with calibrated scales and tamper proof locks. They also include main switch with indicator and heat and overheat indicators.
